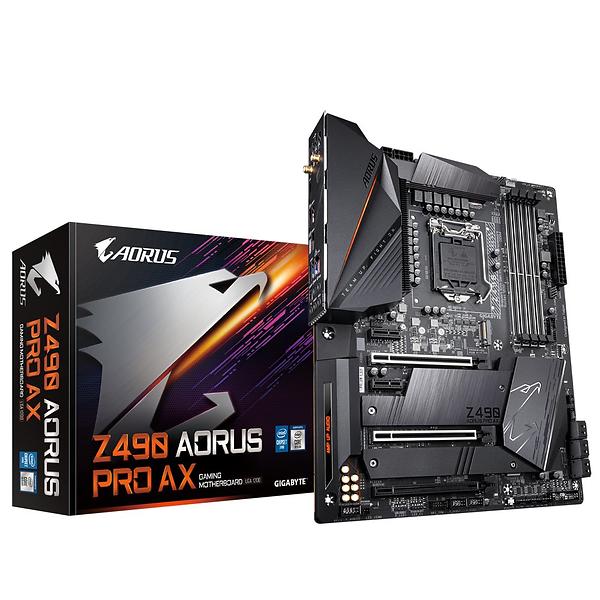

Gigabyte Z490 Aorus Pro AX
Form factor: ATX, Chipset: Intel [400 Series] Z490, Socket: Intel Socket 1200Read more
No active listings at the moment, but we update prices daily — check back soon.
We have found the product in 0 shops, 0 of which are PriceSpy partners and have a direct link to the shop. How we display prices and shops.
Insights
Price History
The graph shows the lowest price over time for the variant (such as color or size) that has been the cheapest at each point in time. Shipping and used products are not included. Read more about price history.
Reviews
You can no longer leave reviews, the function is temporarily closed. PriceSpy does not verify whether the ones who have left reviews have used or bought the respective product. Read more about reviews
Product information
Basic information
Product name
Gigabyte Z490 Aorus Pro AX
Brand
Category
Chipset
Intel Z490
Form factor
ATX
Maximum amount of memory
128 GB
Type of memory
DDR4
Socket
Intel Socket 1200
General
Cooling
Passive
Connectors
DisplayPort
No
HDMI version
1.4
Headphone output
Yes
Microphone input
1 st
Number of HDMI outputs
1 st
Optical S/PDIF out
1 st
USB
Yes
Type of USB connector
USB (Type A), USB (Type C)
USB 2.0
4 st
USB 3.1 Gen 1 (5Gbps)
3 st
USB 3.2 Gen 2 (10Gbps)
3 st
USB 3.2 Gen 2x2 (20Gbps)
0 st
Connections - Internal
Chassis fan connectors
4 st
M.2
2 st
Other internal connectors
Internal Thunderbolt (Incl. headers)
SATA (Serial ATA)
Yes
Max SATA speed
6 Gb/s
Number of SATA ports
6 st
U.2
0 st
Image properties
Graphics card
No
Dimensions
Depth
244 mm
Width
305 mm
Expansion slots
PCI Express version
3.0
PCI slots
0 st
PCIe Express x1
2 st
PCIe Express x16
3 st
PCIe Express x4
0 st
PCIe Express x8
0 st
Features
Security
TPM
Communication
Bluetooth
Yes
Bluetooth version
5.1
Ethernet connection (RJ45)
Yes
Max Ethernet speed
2.5 Gbit/s
Network chip
Intel I225-V
Number of Ethernet connections
1 st
Wireless network (Wi-Fi)
Yes
Wireless networking standard (IEEE 802.11)
802.11a, 802.11b, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), 802.11ax (Wi-Fi 6)
Compatibility
RAID controller
Yes
Type of RAID
RAID 0, RAID 1, RAID 5, RAID 10
Support for multiple graphics cards
Yes
Multi-GPU technology
CrossFireX, SLI, Quad SLI, Quad CrossFireX, 2-Way SLI, 2-Way CrossFireX
Audio features
Sound card
Yes
Sound card chip
Realtek ALC1220
Memory
ECC support
No
Maximum RAM frequency
5000
Memory module
DIMM
Memory slots
4 st
Memory speeds
DDR4-2666, DDR4-2400, DDR4-2133, DDR4-3200, DDR4-2933
Processor
Integrated CPU
No
Number of processor sockets
One
Miscellaneous
Release year
2020
