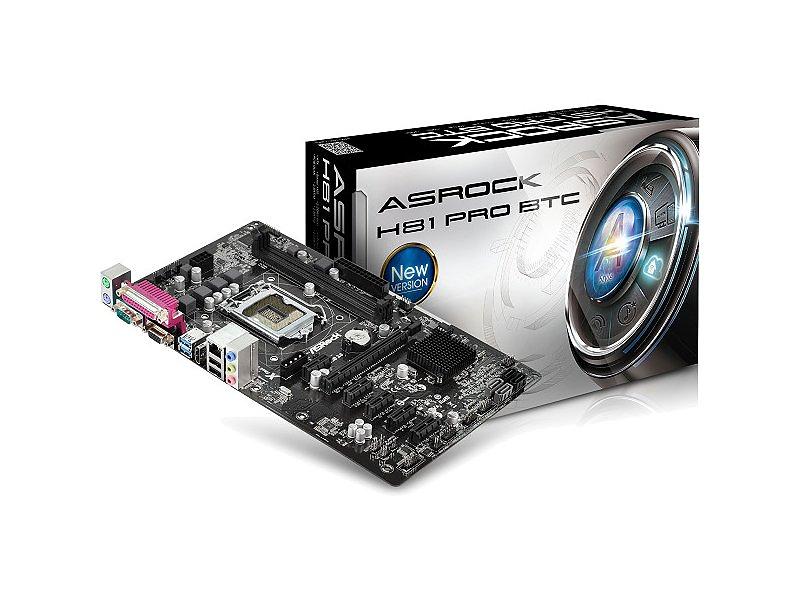

ASRock H81 Pro BTC
Form factor: ATX, Chipset: Intel [8 Series] H81, Socket: Intel Socket 1150Read more
No active listings at the moment, but we update prices daily — check back soon.
Insights
Price History
The graph shows the lowest price over time for the variant (such as color or size) that has been the cheapest at each point in time. Shipping and used products are not included. Read more about price history.
Reviews
You can no longer leave reviews, the function is temporarily closed. PriceSpy does not verify whether the ones who have left reviews have used or bought the respective product. Read more about reviews
Product information
Basic information
Product name
ASRock H81 Pro BTC
Brand
Category
Chipset
Intel H81
Form factor
ATX
Maximum amount of memory
16 GB
Type of memory
DDR3
Socket
Intel Socket 1150
General
Cooling
Passive
Connectors
DisplayPort
No
HDMI version
1.4a
Headphone output
Yes
Microphone input
1 st
Number of HDMI outputs
1 st
Other connectors
VGA, Parallel port, Serial port
USB
Yes
Type of USB connector
USB (Type A)
USB 2.0
2 st
USB 3.1 Gen 1 (5Gbps)
2 st
USB 3.2 Gen 2 (10Gbps)
0 st
USB 3.2 Gen 2x2 (20Gbps)
0 st
Connections - Internal
Chassis fan connectors
2 st
M.2
0 st
SATA (Serial ATA)
Yes
Max SATA speed
6 Gb/s
Number of SATA ports
4 st
U.2
0 st
Image properties
Graphics card
No
Dimensions
Depth
178 mm
Width
305 mm
Expansion slots
PCI Express version
2.0
PCI slots
0 st
PCIe Express x1
5 st
PCIe Express x16
1 st
PCIe Express x4
0 st
PCIe Express x8
0 st
Features
Security
TPM
Communication
Bluetooth
No
Ethernet connection (RJ45)
Yes
Max Ethernet speed
1 Gbit/s
Network chip
Realtek RTL8111GR
Number of Ethernet connections
1 st
Wireless network (Wi-Fi)
No
Compatibility
RAID controller
No
Support for multiple graphics cards
Yes
Multi-GPU technology
Dual Graphics
Audio features
Sound card
Yes
Sound card chip
Realtek ALC662
Memory
ECC support
No
Memory module
DIMM
Memory slots
2 st
Memory speeds
DDR3-1066, DDR3-1333, DDR3-1600
Processor
Integrated CPU
No
Number of processor sockets
One
Miscellaneous
Release year
2013
